BKWH High Voltage Tester

The BKWH High Voltage Tester was specifically designed for the advanced EV (Electric Vehicle) wire harness testing requirements.

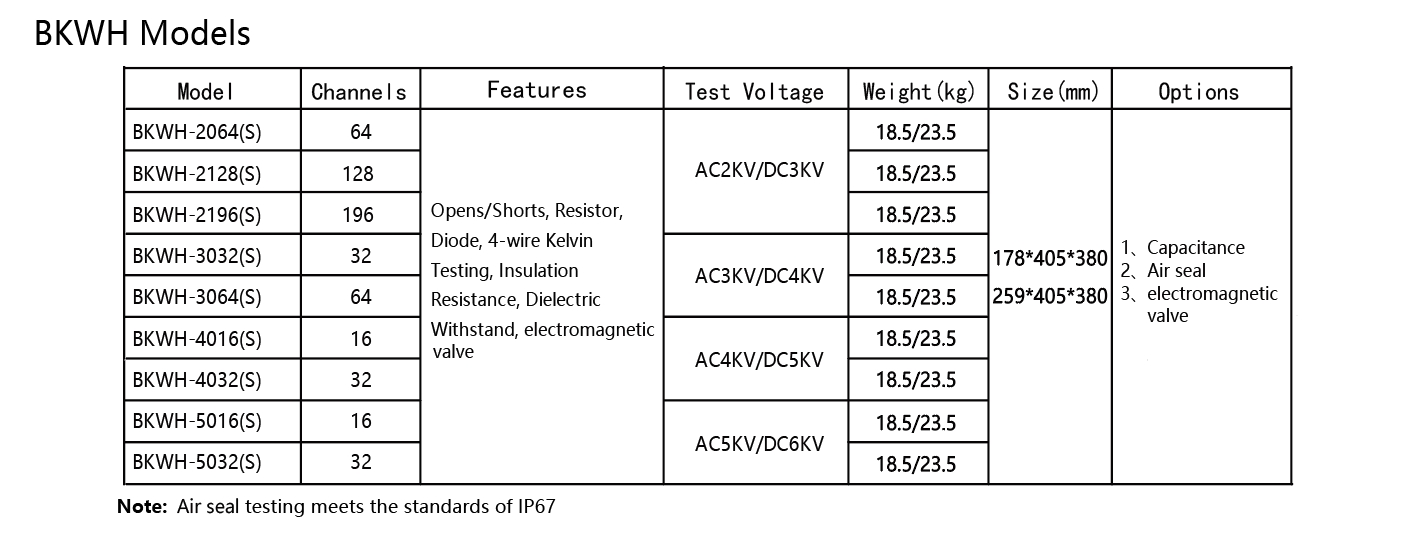

• Model BKWH-5016(s)/5032(s)
• Channel 16/32
• Features Opens/Shorts, Resistor, Diode, 4-wire Kelvin Testing, Insulation Resistance, Dielectric Withstand, electromagnetic valve
• Test Voltage AC5KV/DC6KV
• Weight(kg) 18.5/23.5
• Size(mm) 178*405*380/259*405*380
• Options 1、Capacitance 2、Air seal 3、electromagnetic valve
